Sialon Ceramics and Silicon Nitride Ceramics
Contemporary ceramics with greater mechanical, thermal, and chemical qualities are necessary for present-day technology. Meanwhile, sialon and silicon nitride ceramics are hard, wear-resistant, and thermally stable. Combining silicon nitride and alumina gives sialon fracture toughness and oxidation resistance. Silicon nitride’s low thermal expansion and strong thermal conductivity are ideal for high-temperature applications. Aerospace, automotive, and electronics sectors use such ceramics for better engine components, cutting tools, and semiconductor processing equipment. Therefore, they boost performance and durability in hostile settings.
About Sialon and Silicon Nitride Ceramics
Sialon Ceramics
Silicon, aluminum, oxygen, and nitrogen make sialon ceramics, sophisticated materials. Sialons are made by replacing silicon and nitrogen atoms in silicon nitride (Si3N4) with aluminum and oxygen. It improves toughness and thermal stability. Sialons may be classified as alpha (α), beta (β), or mixed-phase. Alpha sialons, a single-phase material with great hardness and oxidation resistance at high temperatures, are employed in severe wear applications.
Beta sialons suit cutting tools and wear components thanks to their interlocking grain structure, fracture toughness, and thermal shock resistance. Mixed-phase sialons balance hardness and toughness for high-temperature applications while combining alpha and beta characteristics.
Silicon Nitride Ceramics
High-performance silicon nitride ceramics (Si3N4) are silicon and nitrogen-based. These ceramics are noteworthy for high strength, fracture toughness, thermal stability, and oxidation resistance. Silicon nitride is reaction-bonded, sintered, or hot-pressed. Nitriding silicon powder compacts into porous, resistant reaction-bonded silicon nitride (RBSN). Sintered silicon nitride (SSN) produces dense ceramics with higher mechanical characteristics for bearing and turbine components while sintering yttria or alumina. Hot-pressed silicon nitride (HPSN) is fabricated while applying heat and pressure simultaneously. It is a dense ceramic with unusual mechanical strength and thermal conductivity for high-performance engine components and electronic substrates.
Sintering Processes
Sintering of Silicon Nitride Ceramics
Green bodies are densified into a strong structure during silicon nitride (Si3N4) ceramic sintering. To avoid decomposition, pressureless sintering may happen in nitrogen at 1750°C-1850°C. Gas pressure sintering (GPD) increases densification while applying nitrogen gas pressure up to 10 MPa. It can lower sintering temperatures to 1700°C and reach near-theoretical density. Hot isostatic pressing (HIP) increases mechanical qualities by combining high temperatures (1600°C-1800°C) with isostatic gas pressure (100-200 MPa). Sintering temperature, pressure, and environment must be regulated for better grain growth, mechanical strength, and lower porosity.
Sintering of Sialon Ceramics
In sintering β′-sialon ceramics, there are parallels to silicon nitride but also variances. Although both use high-temperature sintering, sialons might need Y2O3 and MgO to form liquid phases and increase densification. The additives may decrease the sintering temperature to 1600°C-1750°C and generate a transient liquid phase. It dissolves and reprecipitates grains for homogeneous microstructure growth. The dissolution-diffusion-reprecipitation sintering process affects grain size and shape. Microstructural control boosts fracture toughness and wear resistance. As a result, it renders additives and sintering settings vital for high-performance sialon ceramics.
Applications of Sialon and Silicon Nitride Ceramics
General Applications
High hardness, wear resistance, and temperature stability render sialon and silicon nitride ceramics ideal for cutting tools and abrasives. Sialon ceramics keep cutting tools sharp at high speeds and temperatures. Consequently, it minimizes tool replacement frequency. Silicon nitride promotes productivity in high-speed cast iron and hard steel machining. Automotive engine parts and turbochargers need these ceramics. Its low thermal expansion and potent thermal shock resistance are durable in brutal situations. High wear resistance, low friction, and broadened service life increase industrial equipment bearings and rollers for lower upkeep expenses.
Sialon ULTRA™ Ceramics
Sialon Ceramics Ltd - Since 1986
Specific Applications in Molten Non-Ferrous Industry
Given their thermal shock and chemical resilience, sialon and silicon nitride ceramics can handle molten non-ferrous metals. In adverse circumstances, these materials resist breaking from abrupt temperature fluctuations. Ceramic thermocouple sheaths provide process control with reliable temperature measurements. Riser tubes and rotor shafts made of sialon or silicon nitride limit contamination and preserve molten metal handling. Their low molten metal wettability and strong mechanical strength decrease casting timeout and enhance efficiency.
In-Depth Focus: Molten Non-Ferrous Industry
Challenges in the Molten Non-Ferrous Industry
Molten non-ferrous activities may face temperatures beyond 1000°C and reactive metals that are very corrosive. Such conditions accelerate graphite and alumina degradation, prompting frequent replacements and greater unavailability. These settings also need materials that endure fast heat cycling and grave chemical reactions. Novel materials with higher thermal stability, corrosion resistance, and mechanical strength are necessary for component efficiency and life.
Role of Sialon and Silicon Nitride Ceramics
The molten non-ferrous sector benefits from sialon and silicon nitride ceramics. In particular, sialon ceramics have potent thermal shock resistance, 17.37 ± 0.48 GPa hardness, and chemical stability in extreme situations. Silicon nitride ceramics are durable under thermal stress thanks to their low thermal expansion coefficients (3.27×10(-6) °C) and good fracture toughness. Such ceramics generate silicon oxynitride layers that inhibit oxidation, unlike graphite, which oxidizes at high temperatures. It makes them last longer and needs less care than standard materials.
Key Components and Their Functions

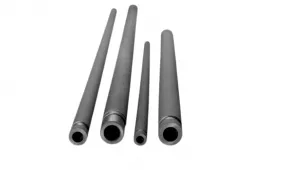

Silicon nitride thermocouple sheaths shield temperature sensors in molten metal baths. They provide accurate readings and sensor life. Plus, sialon ceramics’ thermal and mechanical resilience helps riser tubes. They are key to low-pressure die casting, retaining performance and shape at high temperatures, decreasing casting faults, and increasing production efficiency. Silicon nitride rotor shafts in aluminum refining are confronted with constant molten metal and corrosive fluxes and resist oxidation and wear. They cut repair expenses and improve process reliability.
Future Trends and Innovations
Advancements in Sintering Techniques
Newer advances in sialon and silicon nitride ceramic sintering refine additives and aids for better material characteristics. Rare earth oxides, including yttria and ytterbia, promote densification and microstructural uniformity. They promote grain boundary phase development and decrease sintering temperature for greater fracture toughness and thermal stability. Improvements in pressureless sintering and spark plasma sintering (SPS) provide precise microstructural control. Subsequently, it may culminate in ultra-fine grain sizes below 200 nm in ceramics. Shorter sintering periods lower grain formation and enhance hardness and wear resistance.
Emerging Applications
Silicon and silicon nitride ceramics are entering biomedical and electronic uses. Silicon nitride’s biocompatibility and anti-bacterial qualities render it a better biomedical implant for spinal fusion and dental implants. Due to their high thermal conductivity (up to 85 W/m•K) and electrical insulation, such ceramics are employed for high-frequency, high-temperature components in electronics. Their resistance to thermal shock and mechanical wear strengthens component future and performance in high-efficiency turbine blades and solar cell substrates, which the renewable energy industry is investigating. Their adaptability renders them attractive candidates for important roles in radical technology. Hence, it predicts major progress in these creative applications.
Please contact us if you want to learn more about any of the types of ceramics.
